DIY EL84 Amp Project: Part 3, Circuit Board Assembly

If naked tube sockets are your thing, you’ve come to the right place.
By Steve Graham
DIY EL84 Project: Part 3
Circuit Board Assembly: Finally, We Get To The Fun Part!

News Flash: Potential amp builders living in the U.S.A., please note: Antique Electronic Supply, https://www.tubesandmore.com/ is offering a 10% discount on all Hammond products through to March 2, 2020.  If you have been sitting on the fence, now might be the time act.

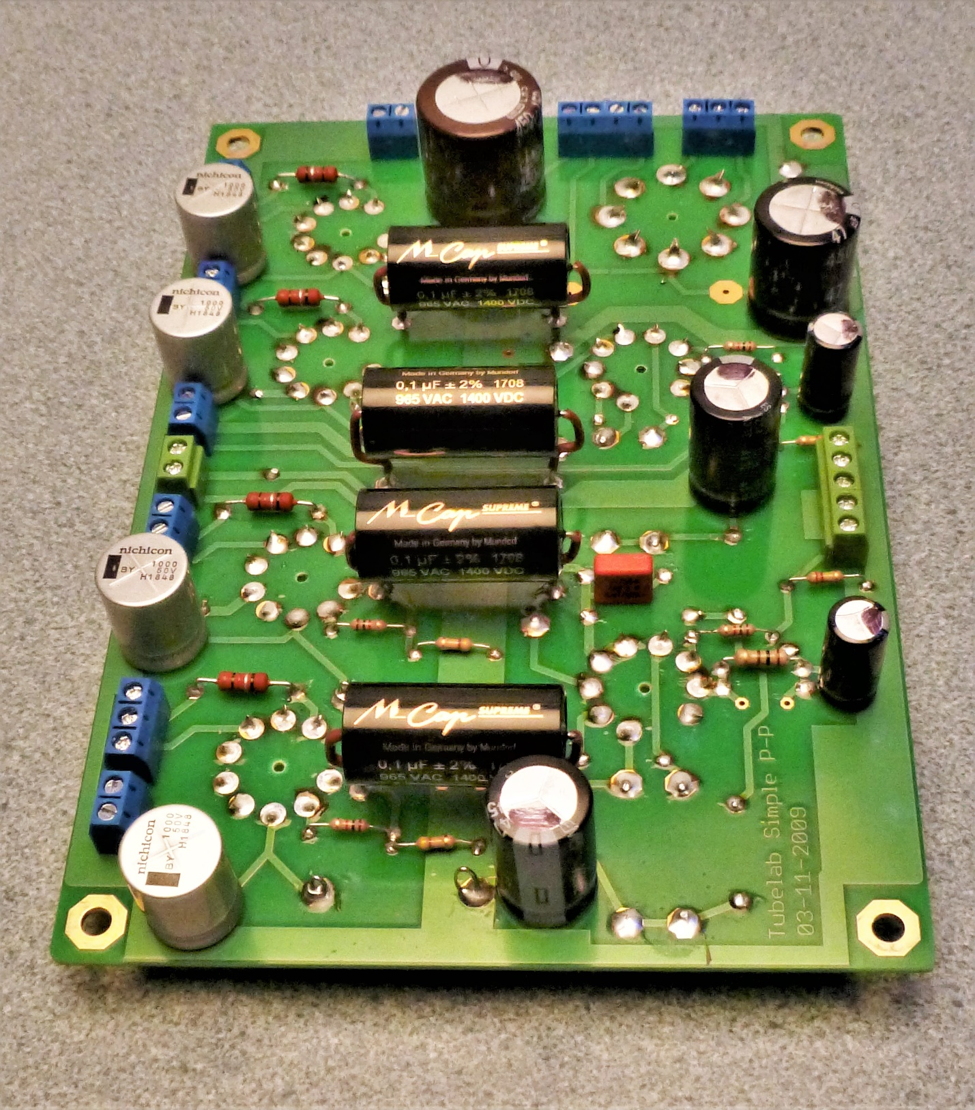

***Cap upgrade: Our patron decided to splurge on four Mundorf Supreme coupling caps: these cost about $9 US (each) more than the CDE caps that are in the parts list.



***Volume pot: I found a few pictures that might help clarify use of the volume pot mounting plate if a volume control features in your build.  I’ve included that as Part 2, Attachment 6 below.

Part 2, Attachment 6:  Volume Pot Mounting Plate



Perform the tasks for Part 3 in the attachments below

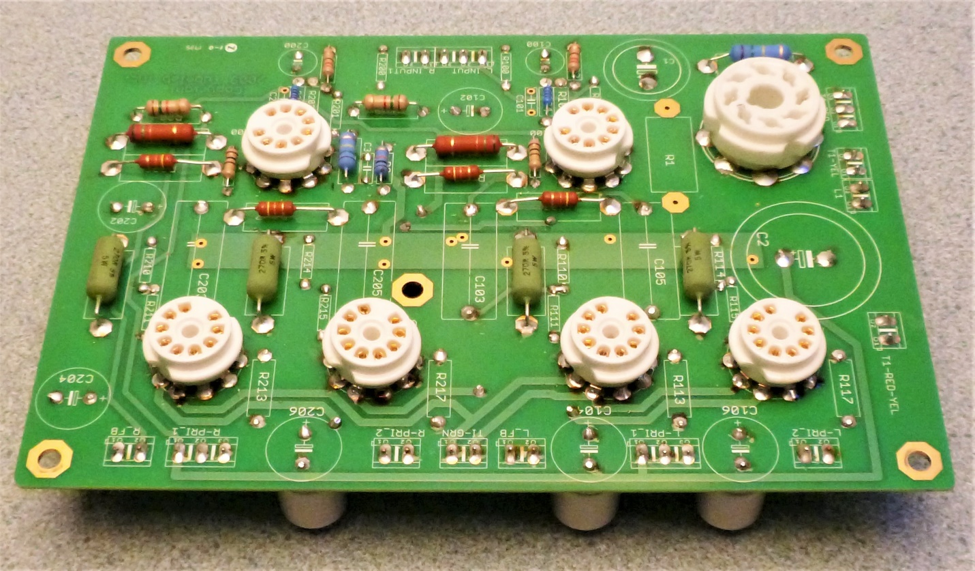

Attachment 1: Board Prep. & Tube Socket Assembly

Attachment 2 (Revised): Resistor Assembly

Attachment 3: Capacitor Assembly

Attachment 4: Terminal Block Assembly



Attachment: Simple P-P Board



Next time, in Part 4, we’ll assemble the transformers, circuit board and other parts to the chassis and connect them up.
